Best Powerline Network Adapters 2024

Use your home’s existing electrical wiring to extend your wired network

Our pick: Which powerline network adapter is best?

Powerline adapters are like the best Wi-Fi extenders in that they’re all nearly identical in design and boring as stale toast. But if we must spotlight one specific adapter, TP-Link’s TL-PA9020P kit is a solid choice with its dual Gigabit Ethernet ports and capacity for Multi-Gig speeds using your home’s electrical wiring.

The 5 best powerline network adapters

Best powerline network adapters

ModelSpeedEthernet portsPrice*Get it
Best overallTP-Link TL-PA9020P2,000 Mbps2$89.99View on Amazon
Best for budgetsTP-Link TL-PA7017P1,000 Mbps1$53.97View on Amazon
Best for speedZyxel PLA6456BB2,400 Mbps1$70.99View on Amazon
Best for Wi-FiTP-Link TL-WPA76171,000 Mbps1$74.99View on Amazon
Best nano kitTRENDnet TPL-422E2K1,300 Mbps1$71.19View on Amazon

What should you look for in a powerline adapter?

Speed should be your top priority. Electrical wiring is unshielded, so there can be a lot of interference slowing down the connection between adapters. Get a powerline kit with a high transmission rate if you can—you’ll probably see a quarter of that speed at the most, so the higher, the better.

You should also consider adapters with pass-through electrical sockets so you don’t lose an outlet when you plug an adaptor into the wall. The sockets are filtered too, meaning your connected device won’t add more electrical noise than what you already have plaguing your home’s wiring.

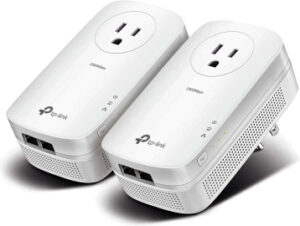

Best overall—TP-Link TL-PA9020P

Best overall

$89.99*

Specs:

  • Version: HomePlug AV2
  • Max speed: 2,000 Mbps
  • Max range: 984 ft.
  • Ports: 2x Gigabit Ethernet each
  • Pass-through outlet: Yes
  • Wi-Fi: No
  • Max # of nodes: 16

We like that both adapters in the TL-PA9020P kit have dual Gigabit Ethernet ports, especially on the router end, since you lose a LAN port to the adapter. The kit has a great max transmission rate too, but your top speed depends on your home’s wiring and everything connected to it.

Theoretically, the kit has a range of up to 984 feet, but your walls and ceilings can hide a lot of length, so the practical distance may be shorter than you think. You can pair up to 16 adapters within that range if you need to expand your connections.

Pros:

  • Dual Gigabit Ethernet ports
  • Pass-through outlet

Cons:

  • No Wi-Fi connectivity
  • Side-mounter LEDs

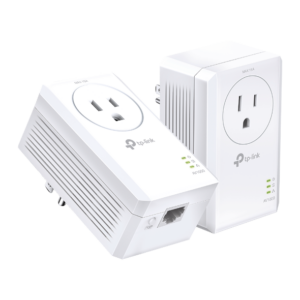

Best for budgets—TP-Link TL-PA7017P

Best for budgets

$53.97*

Specs:

  • Version: HomePlug AV2
  • Max speed: 1,000 Mbps
  • Max range: 984 ft.
  • Ports: 1x Gigabit Ethernet each
  • Pass-through outlet: Yes
  • Wi-Fi: No
  • Max # of nodes: 16

This powerline adapter kit is a watered-down version of the TP-Link TL-PA9020P kit listed above. It has half the transmission rate and half the Gigabit Ethernet ports for about half the cost. It should be plenty if you need a smidge more speed in areas where Wi-Fi can’t reach.

Like with the TL-PA9020P kit, you can create a single TL-PA7017P powerline network with up to 16 nodes—you can even mix and match compatible TP-Link HomePlug AV2 powerline adapters. Also, the built-in pass-through socket is filtered, so no worries about adding extra electrical noise that can disrupt your powerline network.

Pros:

  • Great price
  • Pass-through outlet

Cons:

  • Lackluster speed
  • No Wi-Fi connectivity

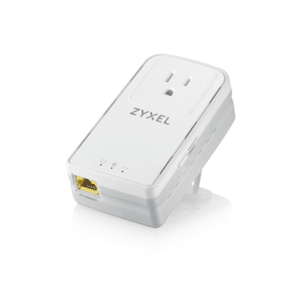

Best for speed—Zyxel PLA6456BB

Best for speed

$70.99*

Specs:

  • Version: G.hn Wave 2
  • Max speed: 2,400 Mbps
  • Max range: 1,640 ft.
  • Ports: 1x Gigabit Ethernet each
  • Pass-through outlet: Yes
  • Wi-Fi: No
  • Max # of nodes: 16

Zyxel’s powerline kit has the fastest transmission speeds on our list, thanks to its use of the newer Gigabit Home Networking (G.hn) standard, which theoretically enables speeds up to 2,400 Mbps. In real-world use cases, you may see 600 Mbps tops, and that’s the best you’ll probably get from networking across noisy power lines until the technology improves.

Other callouts include its impressive range, easy plug-and-play setup, and included pass-through electrical socket, which prevents you from losing a power connection. The adapter’s power-saving feature claims to reduce power consumption by up to 90% by going into standby mode automatically when the adapter idles.

Pros:

  • Fast speeds
  • Best range

Cons:

  • No Wi-Fi
  • Lower node count

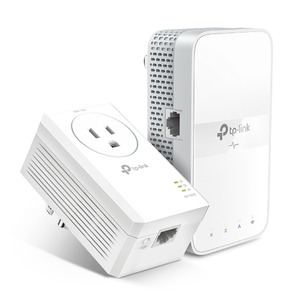

Best for Wi-Fi—TP-Link TL-WPA7617

Best for Wi-Fi

$74.99*

Specs:

  • Version: HomePlug AV2
  • Max speed: 1,000 Mbps
  • Max range: 984 ft.
  • Ports: 1x Gigabit Ethernet each
  • Pass-through outlet: Yes
  • Wi-Fi: AC1300
  • Max # of nodes: N/A

We generally don’t like to suggest powerline kits with Wi-Fi because you’d probably be better off with a traditional Wi-Fi extender. But if you can’t or don’t want to use Ethernet or Wi-Fi to widen your home network, TP-Link’s TL-WPA7617 kit is here to help.

At first glance, the adapter seems best for IoT devices because real-world powerline speeds are slow, and the Wi-Fi 5 standard is outdated. The big callout here is OneMesh compatibility and how the adapter chooses the best connection (Wi-Fi or powerline) to receive and send data to the router.

To get the most out of this kit, you need a compatible TP-Link OneMesh router. Also, keep in mind that you’ll lose a wall plug since the Wi-Fi unit doesn’t have a pass-through socket (but the router-side unit does).

Pros:

  • AC1300 Wi-Fi access
  • OneMesh support

Cons:

  • Single pass-thru socket
  • High price

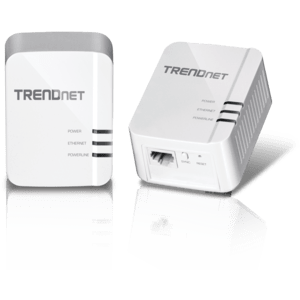

Best nano kit—TRENDnet TPL-422E2K

Best nano kit

$71.19*

Specs:

  • Version: HomePlug AV2
  • Max speed: 1,300 Mbps
  • Max range: 984 ft.
  • Ports: 1x Gigabit Ethernet each
  • Pass-through outlet: No
  • Wi-Fi: No
  • Max # of nodes: 8

If you don’t need pass-through sockets on your powerline adapters, TRENDnet’s TPL-422E2K starter kit should be ideal. It’s a bit more expensive than Zyxel’s kit, which packs more speed and longer range, but the compact design of each unit keeps them inconspicuous—great for offices.

This kit’s theoretical speed is middling compared to other TP-Link kits. However, it supports only up to eight units in a single powerline network, where other powerline kits support up to 16. But theoretically, you could pair this kit with any other powerline adapter based on the HomePlug AV standard.

Pros:

  • Compact design
  • Easy installation

Cons:

  • No Wi-Fi connectivity
  • No pass-thru sockets

Powerline network adapter specs and features

All powerline adapters have the same mission: extend your home network using existing electrical wiring. As a result, they have nearly identical features across the board. Here are a few specifics to look for when shopping for a new kit.

Speed

The higher the transfer rate, the better. Electrical wiring wasn’t designed to deliver data, so there’s no shielding to reduce interference. If a powerline adapter has a theoretical transfer rate of 2,000 Mbps, you may see a quarter of that speed at most between two units. Your real-world speed depends on your electrical wiring, the power outlets, the devices you have plugged in, and the circuit breakers.

Pass-through power outlet

Get a powerline adapter with a pass-through socket if you’re in a space where power outlets are in high demand. These sockets let you keep the same number of working power outlets while maintaining your wired internet connections.

Generally, these powerline adapters plug into the bottom socket on a wall outlet. But their size may prevent you from plugging a power connector with a ground prong (like desktop power cables) into the top socket. You should be fine with plugs without the third prong.

Gigabit Ethernet

All powerline adapters listed here have at least one Gigabit Ethernet port. In the typical scenario, you plug one adapter into a router and the other adapter into a wired device. You don’t want a Fast Ethernet port on an adapter, which has a max speed of 100 Mbps versus 1,000 Mbps with Gigabit Ethernet. Since you want the most out of your connection, Gigabit Ethernet is best.

Shopping around for new internet?

Enter your zip code below to see which providers are available in your area.



Our verdict

It’s hard to pick our favorite blade of grass, and that’s what it feels like while selecting the best powerline adapter. They all look identical and do the same thing.

But TP-Link’s TL-PA9020P kit hits that “just right” sweet spot in our book. We like the extra Gigabit Ethernet port, especially on the router side, so you don’t lose a LAN port. The speed is decent, and the pass-through socket is a great extra.



Get the TP-Link TL-PA9020P kit

FAQ about powerline network adapters

Who should use powerline networking?

Use a powerline adapter if most of your home network works fine, but you need a more reliable, wired connection for one or two devices. For example, a powerline connection would be great for the PC in your basement that never gets a reliable Wi-Fi signal. However, powerline networking isn’t a replacement for wiring your home with Ethernet if you need a bunch of fast wired connections.

Why don’t I see the advertised speeds?

Your home’s electrical wiring isn’t designed to deliver data. The wires don’t have shielding to block all the electrical noise interfering with connections between adapters. Plus, your real-world speeds depend on how your home is wired (copper vs. aluminum), the electrical system’s age, wall outlet types, and installed circuit breakers. You may find that sticking with Wi-Fi 6 is a far better option than powerline. Check out our picks for the best Wi-Fi 6 routers you can get.

What interferes with powerline transmissions?

Anything that causes electrical noise reduces transmission speeds between powerline adapters. Here’s a list of examples:

  • Appliances
  • Power supplies (device chargers)
  • Surge protectors
  • Fluorescent lights
  • Light dimmers

How do I improve my powerline network’s performance?

We put together a list of Dos and Don’ts so you can get the most out of your powerline network:

Do Don’t
  • Plug adapters directly into a wall socket
  • Keep adapters on the same circuit
  • Unplug nearby device chargers
  • Keep adapters away from appliances
  • Plug an adapter into a power strip
  • Plug an adapter into a surge protector
  • Plug an adapter into an extension cord
  • Plug in an adapter near an appliance
  • Plug an adapter into an AFCI outlet
  • Plug an adapter into a GFCI outlet
  • Share outlets with fluorescent lights

HomePlug vs. G.hn: What’s the difference?

Both are networking standards used to deliver data across a medium. The HomePlug standard primarily focuses on electrical wiring, whereas Gigabit Home Networking (G.hn) adds support for coax cable, telephone lines, and Ethernet cables.

HomePlug AV2 was introduced in 2011 and is still widely used in powerline products, although the older HomePlug Alliance is now inactive. The G.hn Wave 2 standard—developed by the International Telecommunication Union—arrived in 2016 and is expected to be succeeded by Wave 3 in 2023.

What does “use the same circuit” mean?

Some homes may have more than one circuit breaker box. For example, there may be one feeding the main house and one feeding a garage turned into a three-room rental. Keep the powerline adapters connected to the same circuit breaker box.

You may even see the best performance from adapters on the same circuit breaker.
